LED High Bay Light

  • Power: 50/100/150/200W
  • Input Voltage: AC 85-265V
  • Lumen: 150-160LM/W
  • Warranty: 5 Years

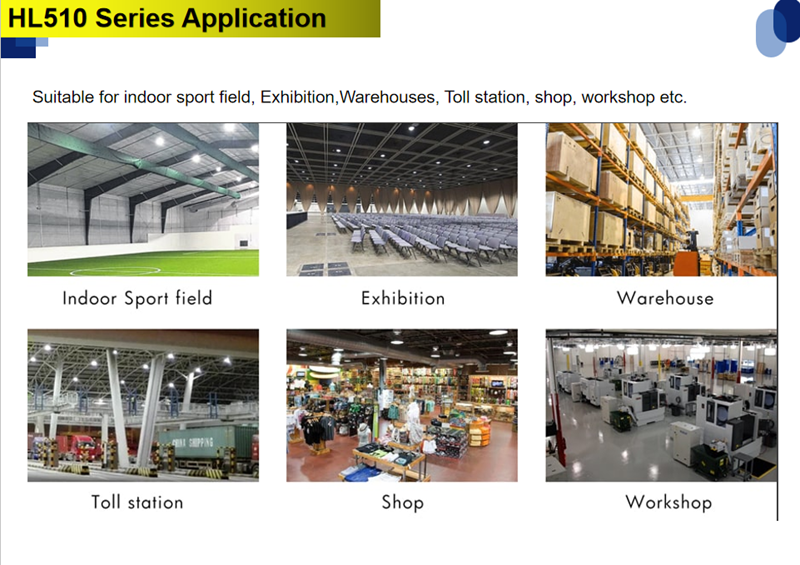

  • Product description: The LED high bay light is designed without lampshade, simple and beautiful appearance, suitable for commercial and industrial lighting.
  • INQUIRY

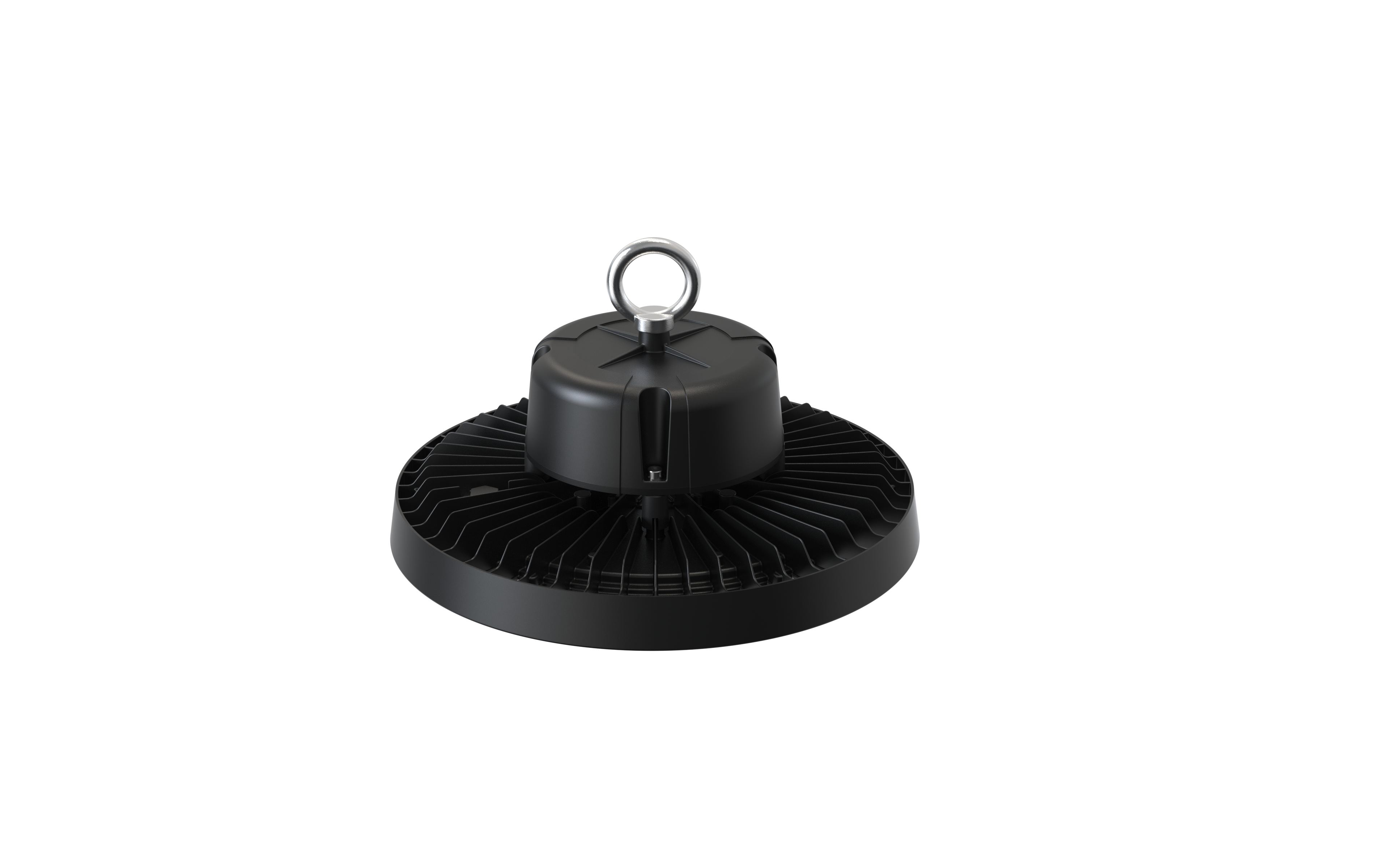

LED High Bay Light

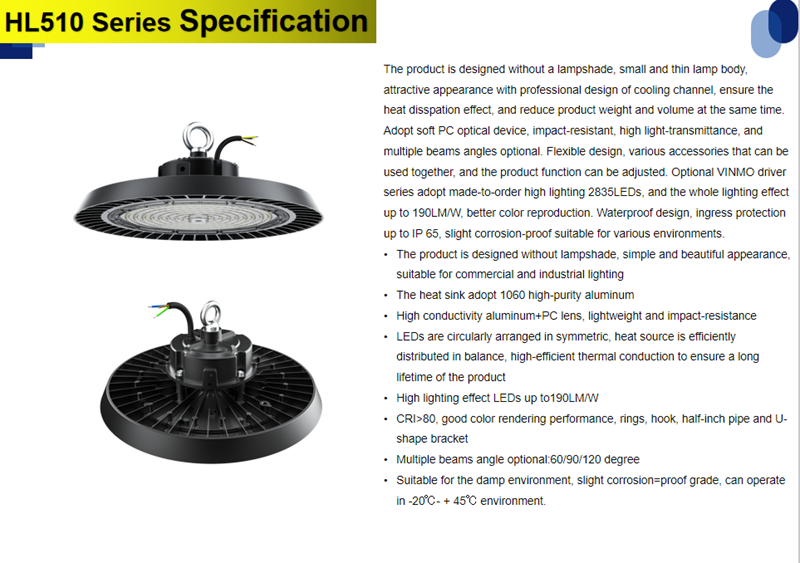

The product is designed without a lampshade, small and thin lamp body, attractive appearance with professional design of cooling channel, ensure the heat disspation effect, and reduce product weight and volume at the same time. Adopt soft PC optical device, impact-resistant, high light-transmittance, and multiple beams angles optional. Flexible design, various accessories that can be used together, and the product function can be adjusted. Optional Meanwell HBG series adopt made-to-order high lighting 2835LEDs, and the whole lighting effect up to 160LM/W, CRI>80, better color reproduction. Waterproof design, ingress protection up to IP 65, slight corrosion-proof suitable for various environments.



  • The product is designed without lampshade, simple and beautiful appearance, suitable for commercial and industrial lighting
  • The heat sink adopt 1060 high-purity aluminum
  • High conductivity aluminum+PC lens, lightweight and impact-resistance
  • LEDs are circularly arranged in symmetric, heat source is efficiently distributed in balance, high-efficient thermal conduction to ensure a long lifetime of the product
  • High lighting effect LEDs up to 160LM/W
  • CRI>80, good color rendering performance, rings, hook, half-inch pipe and U-shape bracket
  • Multiple beams angle optional: 60/90/120 degree, suitable for different application environment
  • Prefabricated design and function and characteristics of the light can be changed later
  • Suitable for the damp environment, slight corrosion=proof grade, can operate in -20- + 45environment.



LED High Bay Light Details


led high bay light

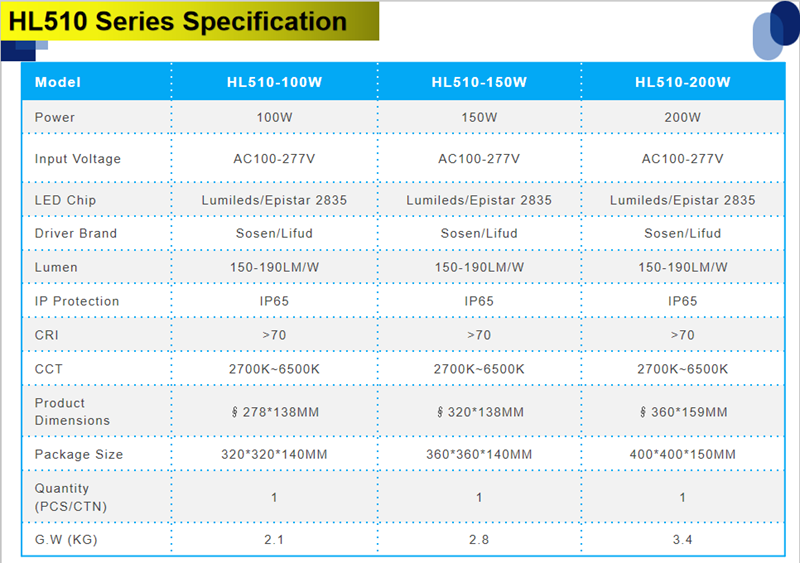

LED High Bay Light Datasheet



Model

VM-HL510

Power

50W

100W

150W

200W

Input Voltage

AC 85-265V

Lumen

150 - 160 LM/W

Driver Brand

Meanwell HBG Driver

Material

AL + PC

Beam Angle

60/90/120 Degree

PF

0.9

CRI

>80

Warranty

5 Years

Protection Class

IP 65

Certification

CE ROHS

Option

Dimmable / Sensor

Quantity

(PCS/CTN)

1

1

1

1

Gross Weight

(KG/CTN)

2

3.3

4.5

6

Product Size

(MM/PCS)

Ø230*45

Ø290*47

Ø345*48

Ø395*50

Package Size

(MM/CTN)

310*310*180

380*380*210

430*430*220

490*490*230

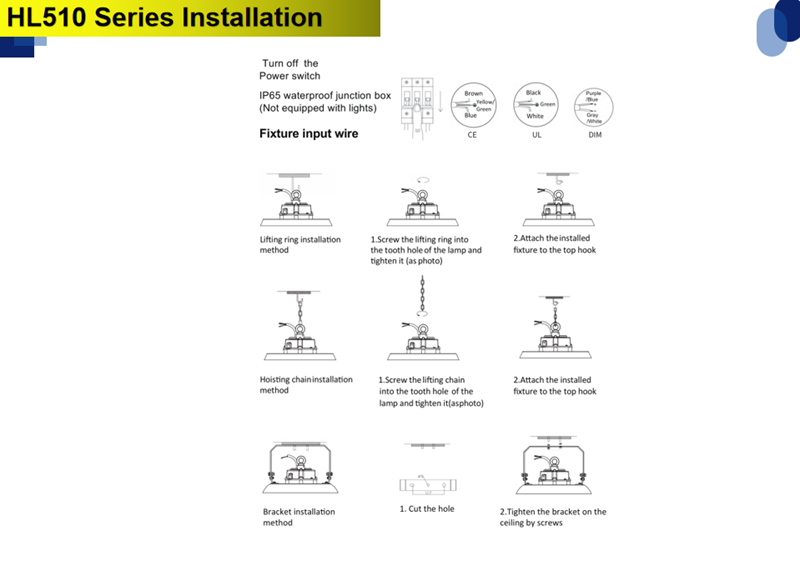

LED High Bay Light Installation


led high bay light
