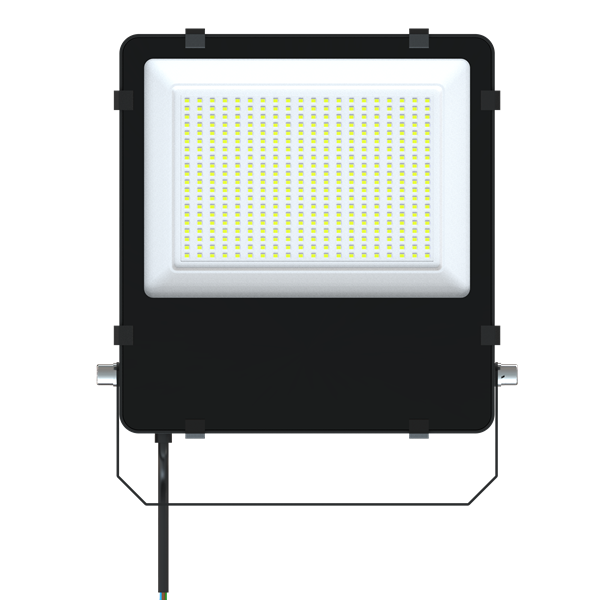

LED Flood Light

  • LED Flood Light
  • LED Flood Light
LED Flood LightLED Flood Light

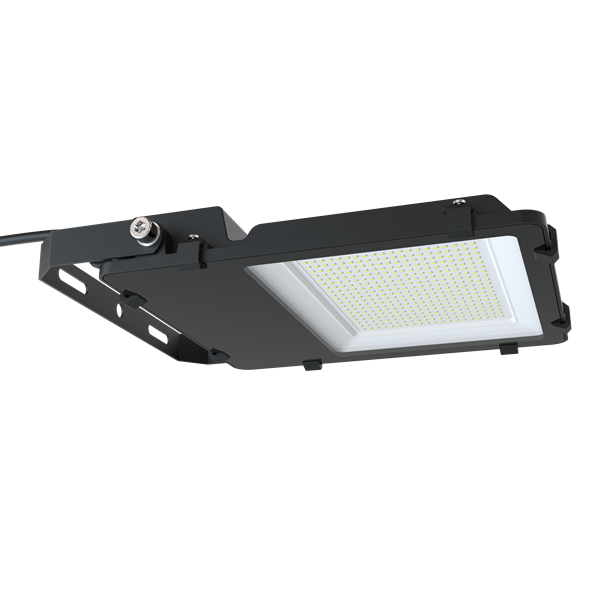

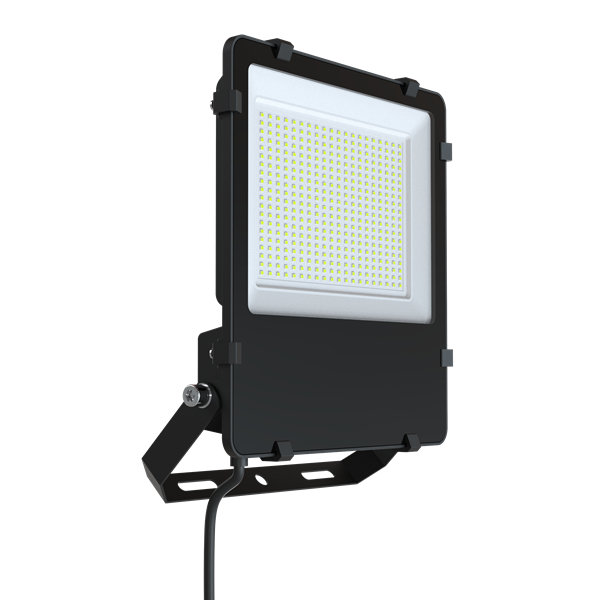

LED Flood Light

  • Power: 50/100/150/200 W
  • Input Voltage: AC 85-265V
  • Lumen: 130-170LM/W
  • Warranty: 5 Years
  • Product description: LED flood light employ high lighting effect LEDs, and its lighting effect can be up to be 170LM/W, the light save energy exceed 70% compared to high-voltage sodium lamp
  • INQUIRY

LED Flood Light

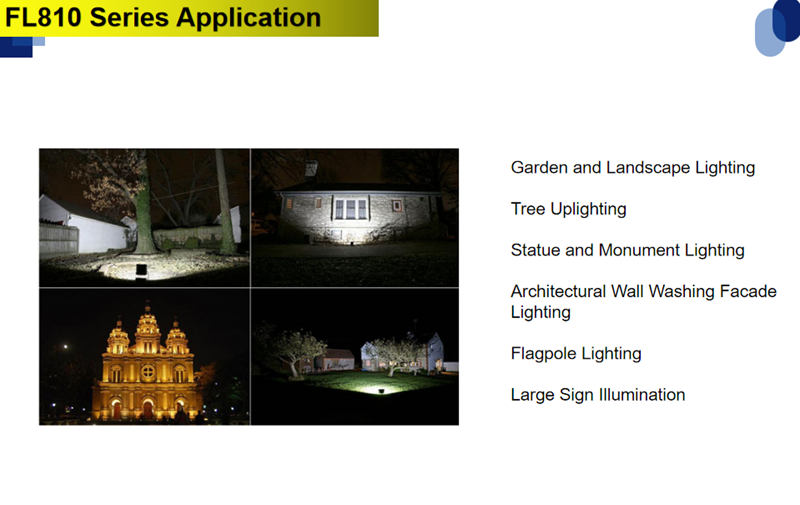

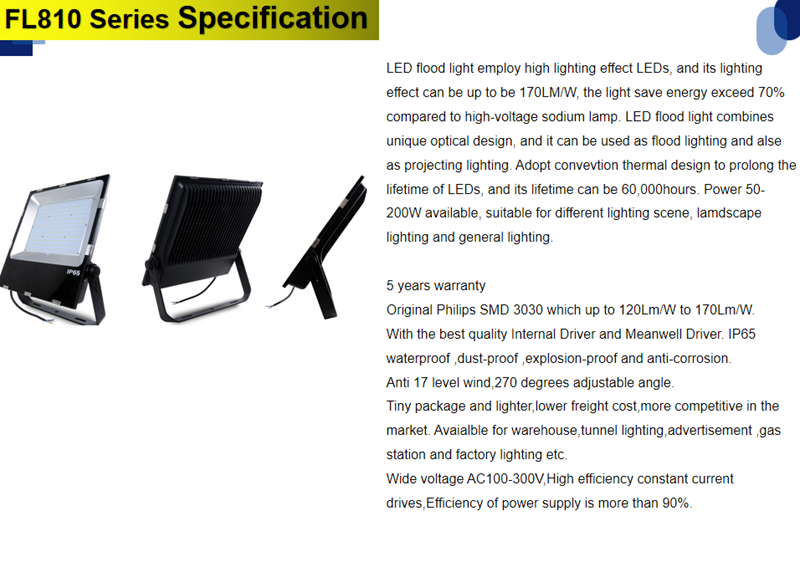

LED flood light employ high lighting effect LEDs, and its lighting effect can be up to be 170LM/W, the light save energy exceed 70% compared to high-voltage sodium lamp. LED flood light combines unique optical design, and it can be used as flood lighting and alse as projecting lighting. Adopt convevtion thermal design to prolong the lifetime of LEDs, and its lifetime can be 60,000hours. Power 50-200W available, suitable for different lighting scene, lamdscape lighting and general lighting.


1. Employ die-casting aluminum alloy lamp body, durable, anti-corrosion, high impact-resistance, uniform luminous surface.

2. The private model product, die-casting housing, can be flexibly spliced, high stability in continuous working.

3. Adopt seoul high lighting effect LEDs, can be up to 170LM/W, higher lighting effect, more energy save.

4. Mulitple choice for power: 50/100/150/200 W

5. Meanwell waterproof power supply, more reliable performance.

6. Higher water-proof performance

7. Ultra-slim design, beautiful appearance, lower transport cost.

8. CRI>80, good color rendering performance.

9. Operating environment temperature: ﹣25°C- +50°C

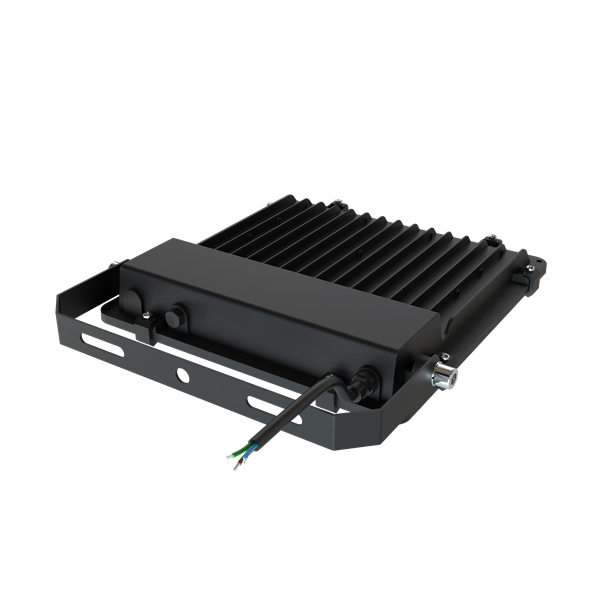

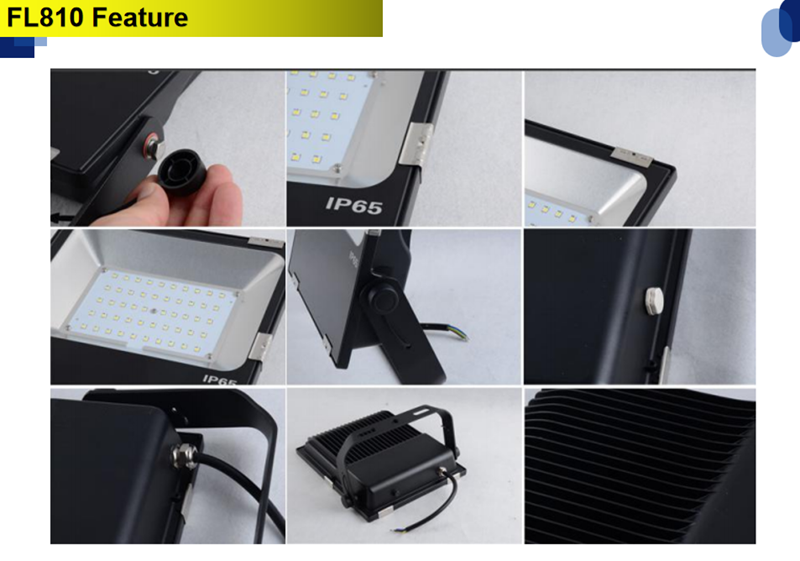

LED Flood Light Details


led flood lightled flood light

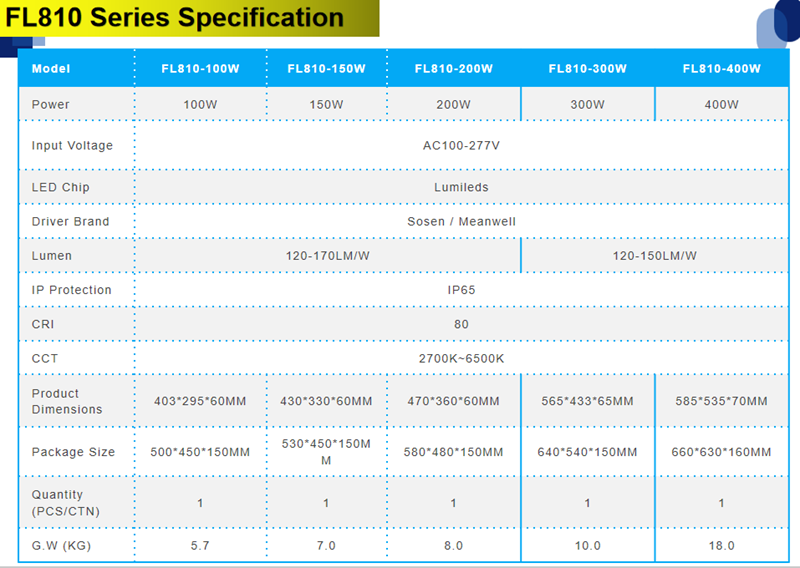

LED Flood Light Datasheet


Model

VM-FL810

Power

50W

100W

150W

200W

Input Voltage

AC 85-265V

Lumen

100 - 170 LM/W

Driver Brand

Meanwell / Common Driver

Beam Angle

120 Degree

PF

0.9

CRI

>80

Warranty

3 / 5 Years

Protection Class

IP 65

Certification

CE ROHS

Option

Dimmable / Non-Dimmable

Quantity ( PCS/CTN )

5

1

1

1

Gross Weight

(KG/CTN)

10

4.9

5.3

7.1

Product Size

(MM/PCS)

220*310.5*47.5

295*402.5*53.5

330*430*60

360*470.5*53.5

Package Size

(MM/CTN)

400*360*320

540*460*170

540*470*170

540*610*210

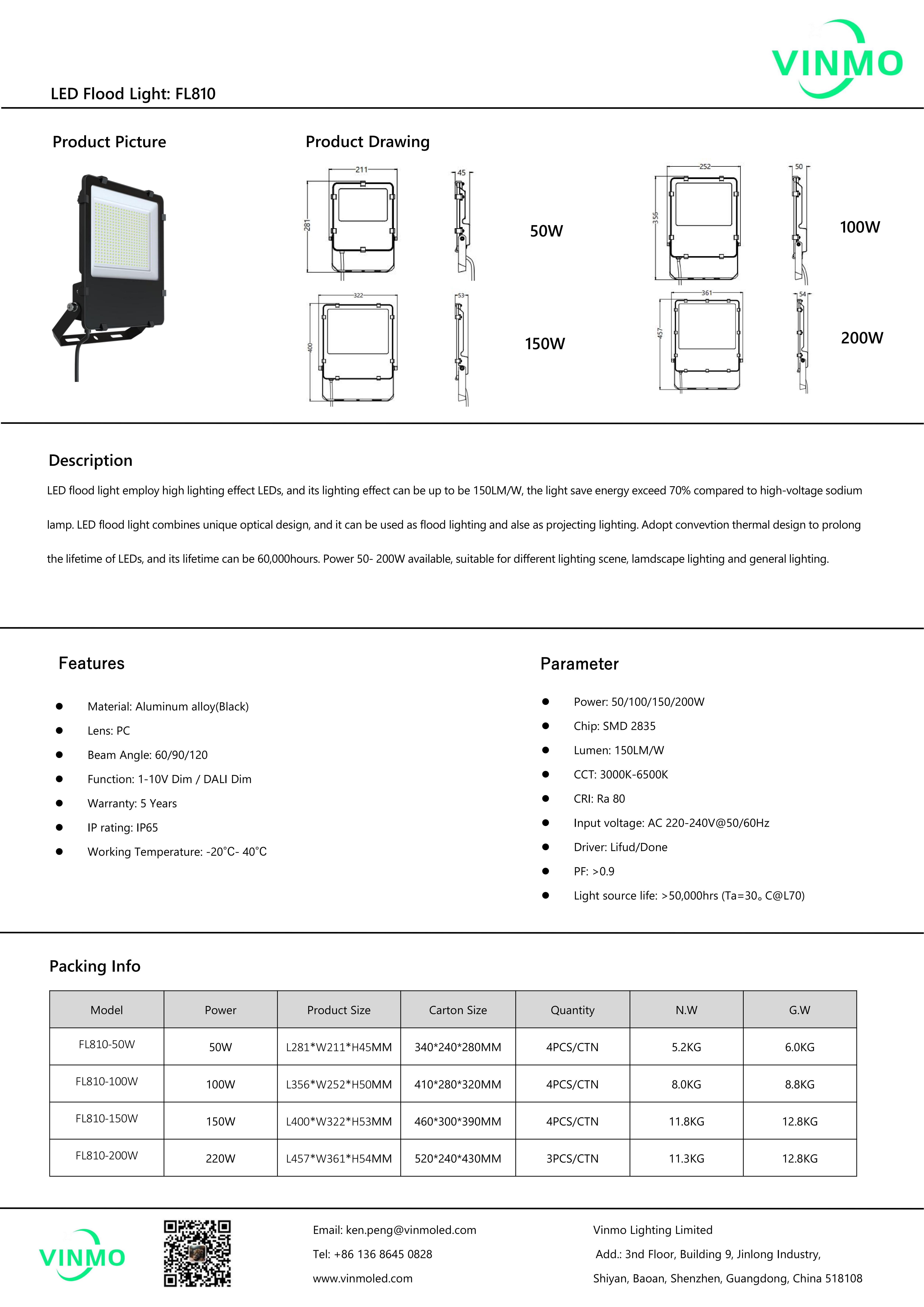

LED Flood Light Demension


led flood light


50W LED Flood Light


led flood light


100W LED Flood Light


led flood light


150W LED Flood Light


led flood light


200W LED Flood Light

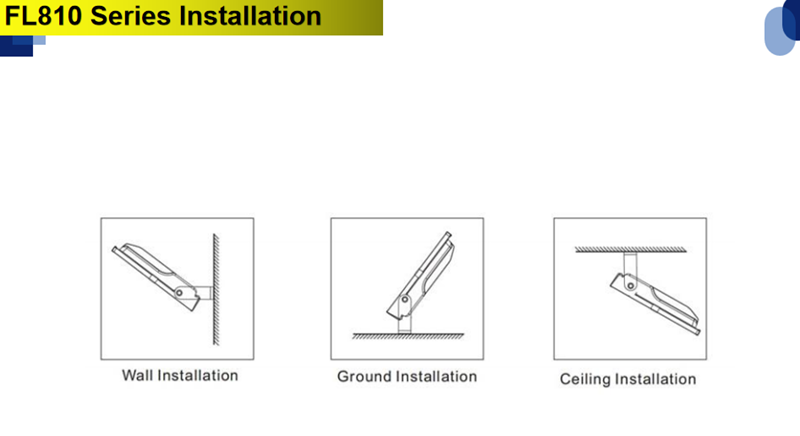

LED Flood Light Installation


led flood light
