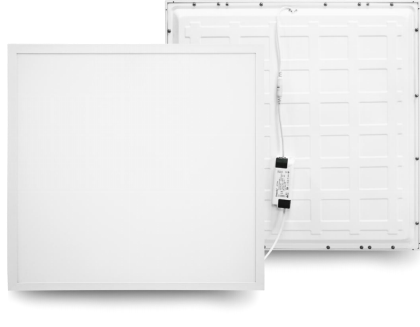

LED Panel Light

  • Power: 40W
  • Input Voltage: AC 220-240V
  • Lumen: 100-150LM/W
  • Warranty: 3-5 Years
  • Product description: Led panel is used use for office, school and so on.
  • INQUIRY

LED Panel Light


LED panel light can perfectly replace traditional downlight. It has the feature of uniform and smooth light beam, low glare rating, low light pollution, and excellent protection from eyestrain. It can be widely used as interior lighting in shops, supermarktes, office, mails and hospitals etc.


  • Adopt simple structure, easy to assemble
  • Energy-saving and eco-friendly, CE ROHS certifications
  • Select edge-lit structure, more uniform and softer light
  • High-efficient thermal management design, LEDs and power supply work in low temperature, high stability of continuous working
  • White lamp body, modern and simple design
  • Standard warranty: 3 or 5 Years

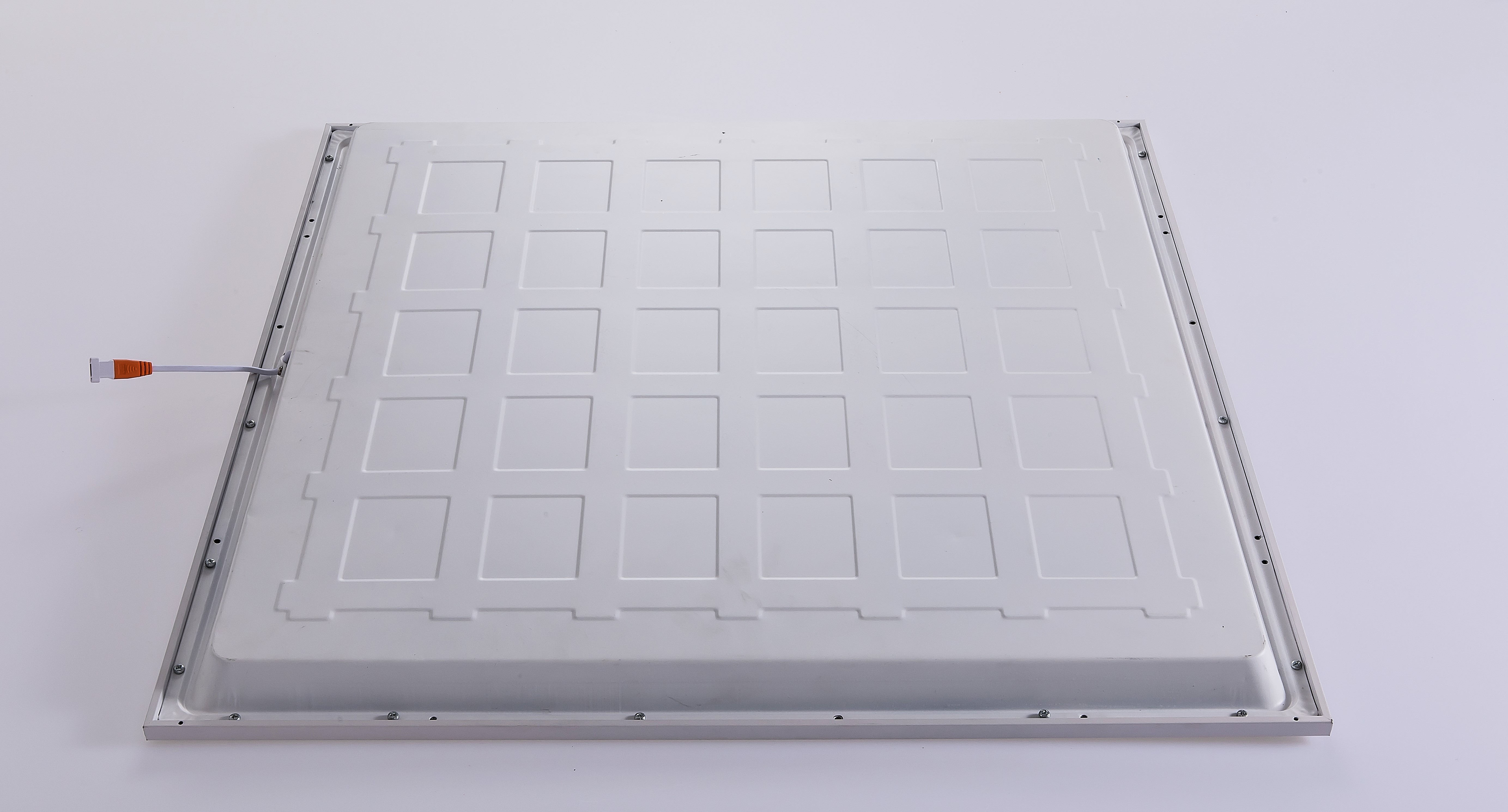

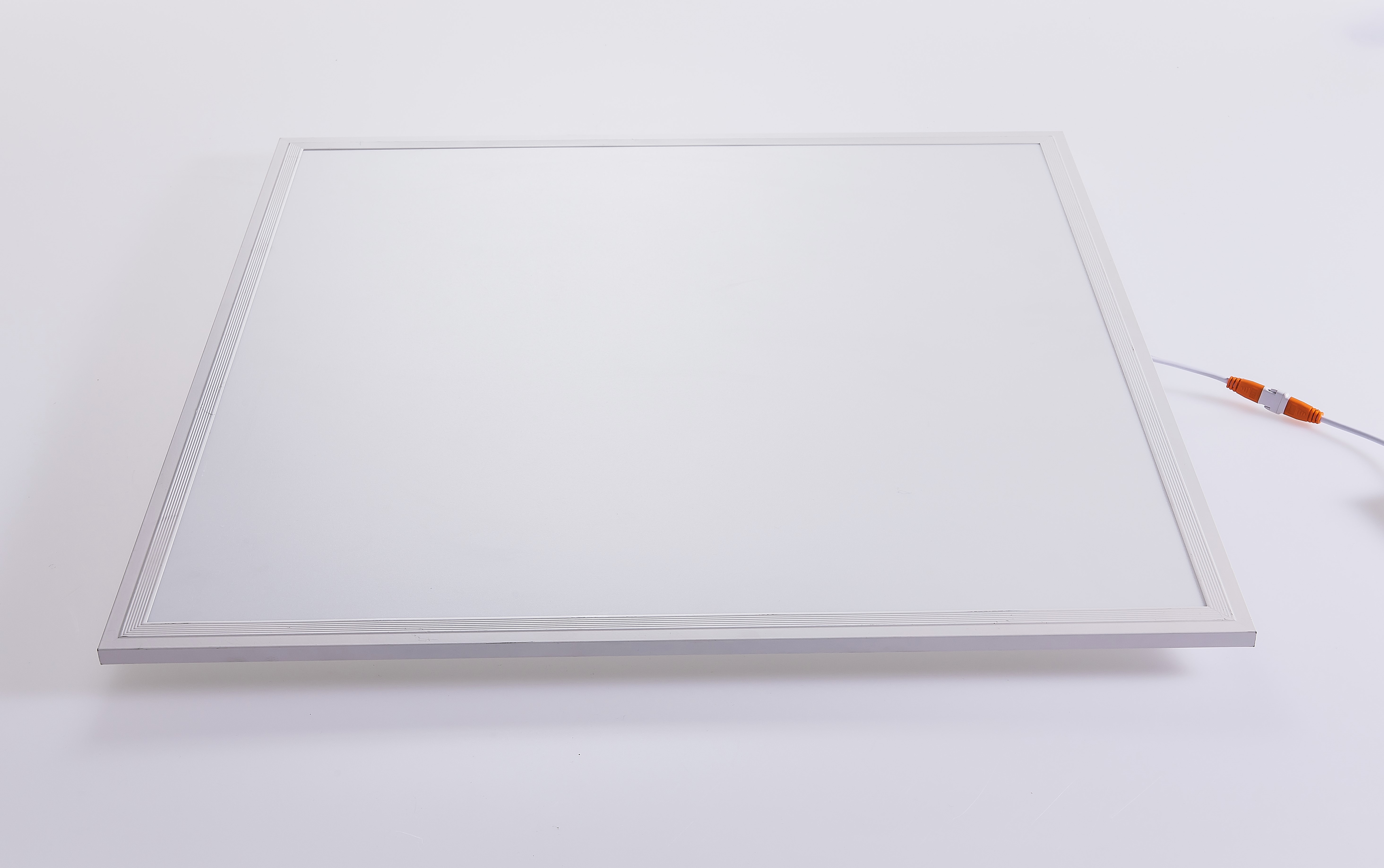

LED Panel Light Details

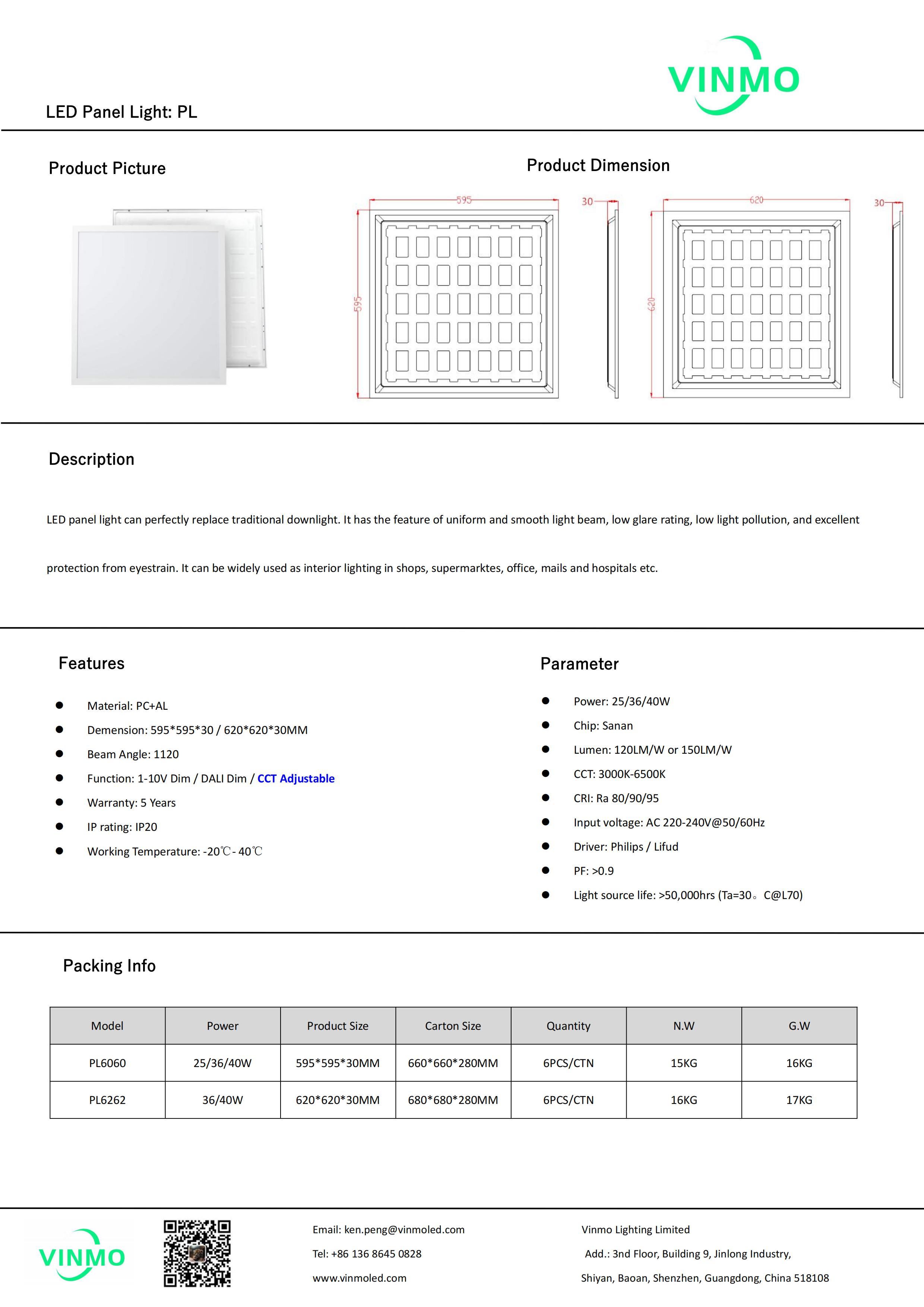

LED Panel Light Datasheet

Model

PL6060-B

PL6262-B

Power

25-40W

25-40W

Input Voltage

AC220-240V


Lumen (at 4000K CRI80)

100-150LM/W

120-150LM/W

Driver Brand

Flicker-free

Flicker-free

CRI

80

80

CCT

3000-6500K

3000-6500K

Function

UGR<19/1-10V Dim/DALI Dim

UGR<19/1-10V Dim/DALI Dim

Product Size

595*595*34MM

620*620*34MM

Outer Box Size

66*22*66CM/CTN

69*22*69CM/CTN

Quantity (PCS/CTN)

4PCS/CTN

4PCS/CTN

Warranty

5 Years

5 Years

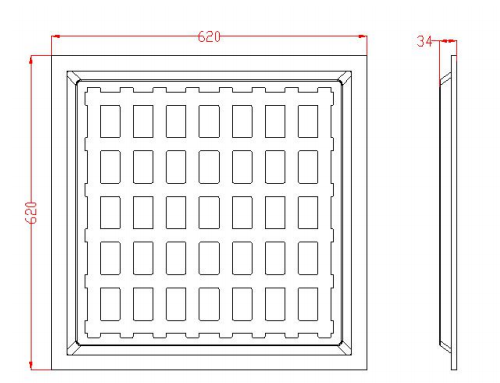

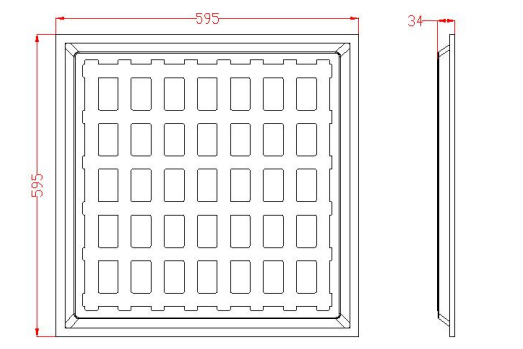

LED Panel Light Demension

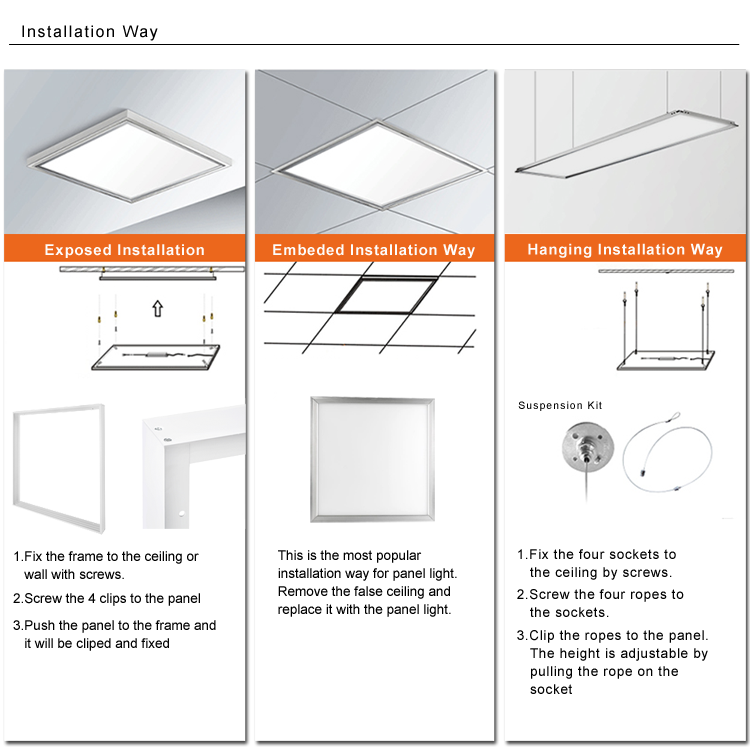

LED Panel Light Installation

led panel

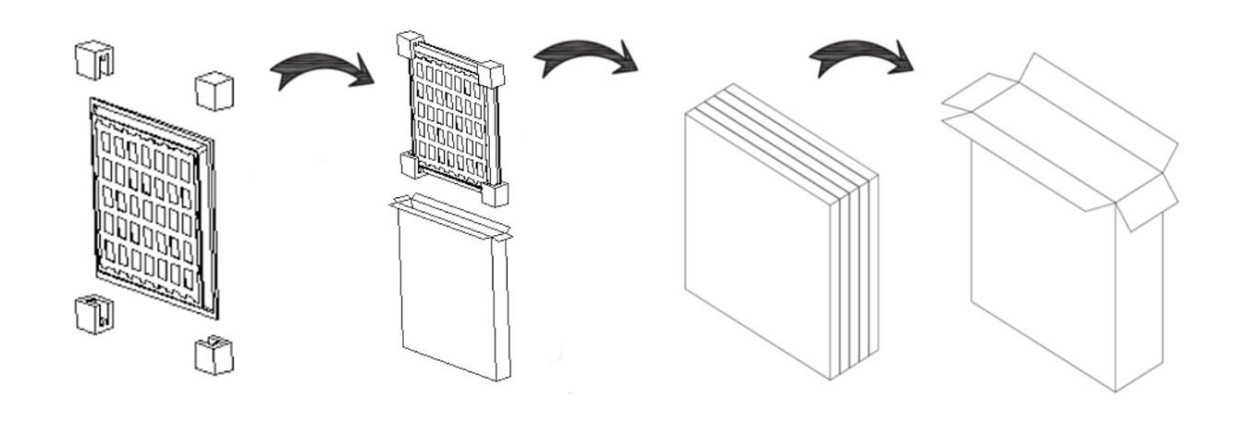

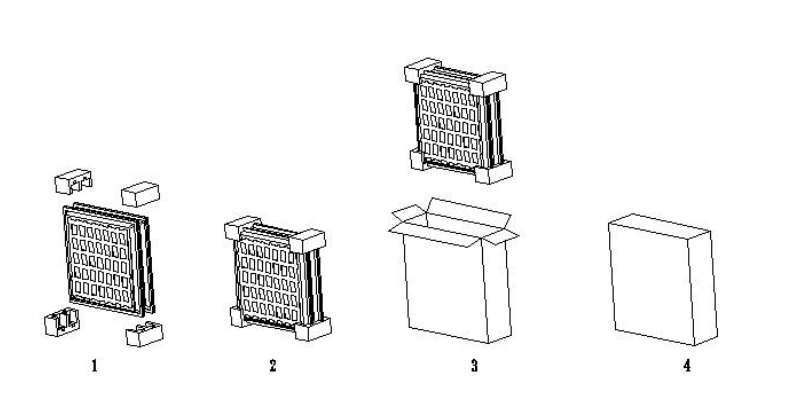

LED Panel Light Packing
