LED Tri-proof Light

  • Power: 20/30/40/50/60W
  • Input Voltage: AC 220-240V
  • Lumen: 120-130LM/W
  • Warranty: 5 Years
  • Product description: LED tri-proof light is usually used in environment which requires water-proof, dust-proof and corrosion-proof lighting, and it is widely used in parking lot, food factory, dust factory, cold storage,
  • INQUIRY

LED Tri-proof Light


VM-TL920 series usually used in environment which requires water-proof, dust-proof and corrosion-proof lighting, and it is widely used in parking lot, food factory, dust factory, cold storage, station and other indoor place. VM-TL920 series lamp can be ceiling mounted and suspension mounted. The lamp adopt PC as eco-friendly material, and it can work stably in a different enviroment, the lamp adopt LEDs of high lumen effect up to 140LM/W, and it can save energy 70% above, built-in sensor and built-in emergency pack, beautiful appearance, conveninient to install, suitable for different applications, power supply with iron shell, equipped with high quality LEDs, lifespan up to 50,000 hours.

1. Knob buckle, easy to operate, add shockproof and anti-loose bumping, more securely.

2. Screwless wire connection, tool-free(press type wiring)

3. Power supply cooling via metal shell, better cooling effect than the plastic shell

4. Adopt class P power supply, more flexible choice

5. Milky cover and clear cover optional

6. When installation, the buckle can hang the PC cover, convenient to connect wire

7. Quick-connect terninal optional

8. High transmitttance top cover, high lighting effect and soft light

9. Plastic shell, low weight, suitable for ceiling and suspension installation

10. PC cover, impact resistance IK08

11. Operating environment temperature: -20℃ - 50℃

12. Corrosion-proof grade: slight protection


LED tri-proof light


LED tri-proof light

LED Tri-proof Light Details

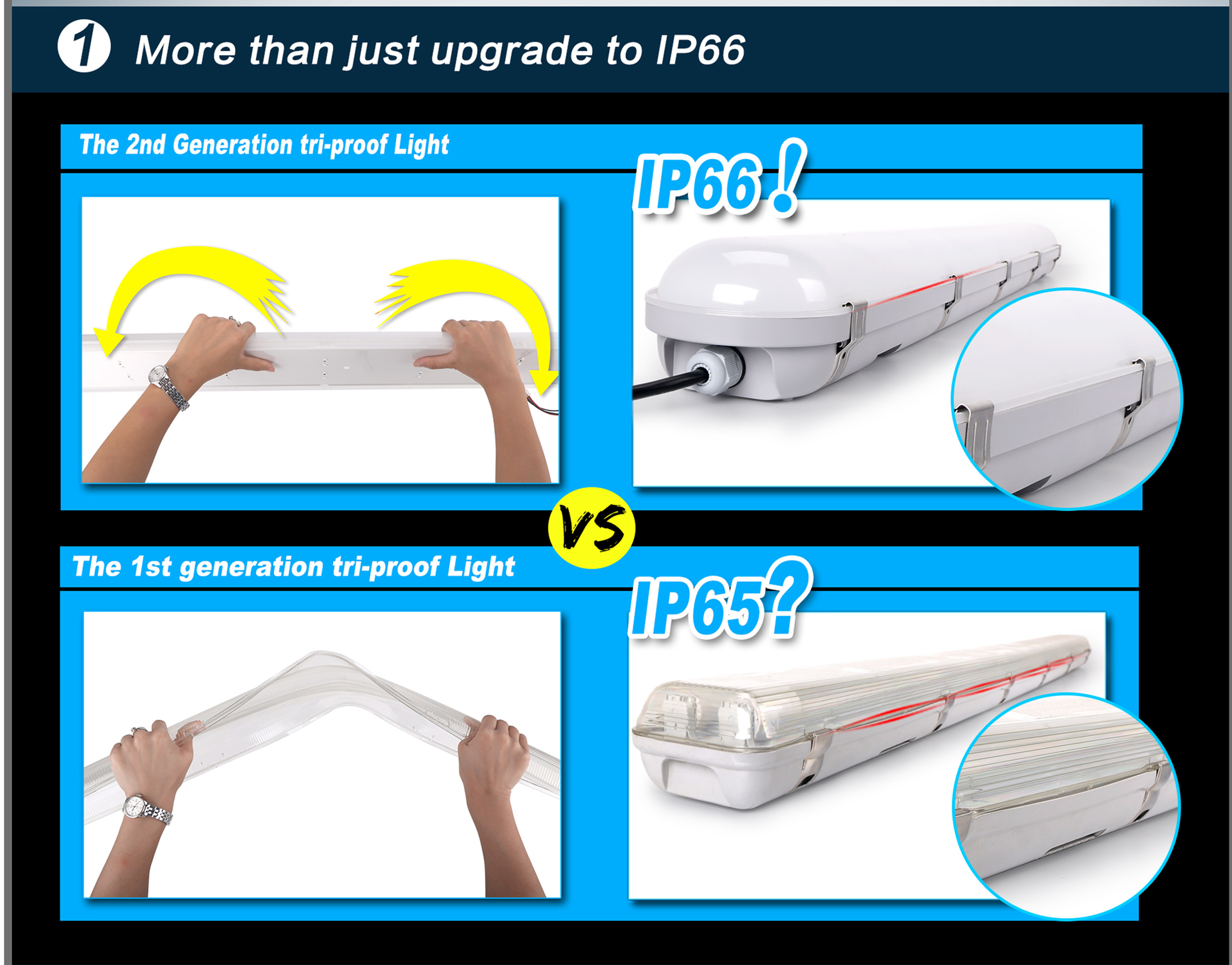

Protection Class IP 66

LED tri-proof light

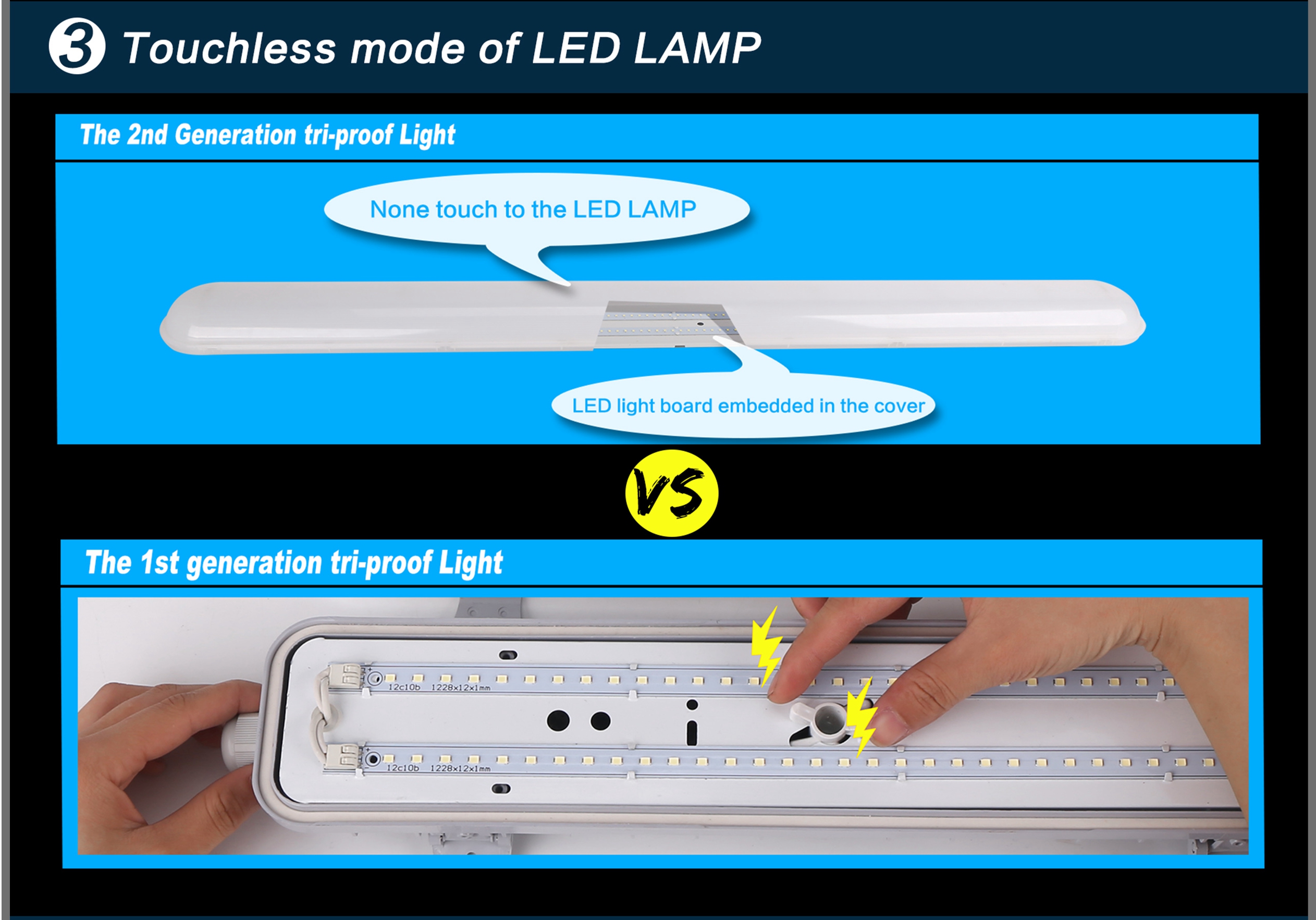

Touchless model of LED lamp

led tri-proof light

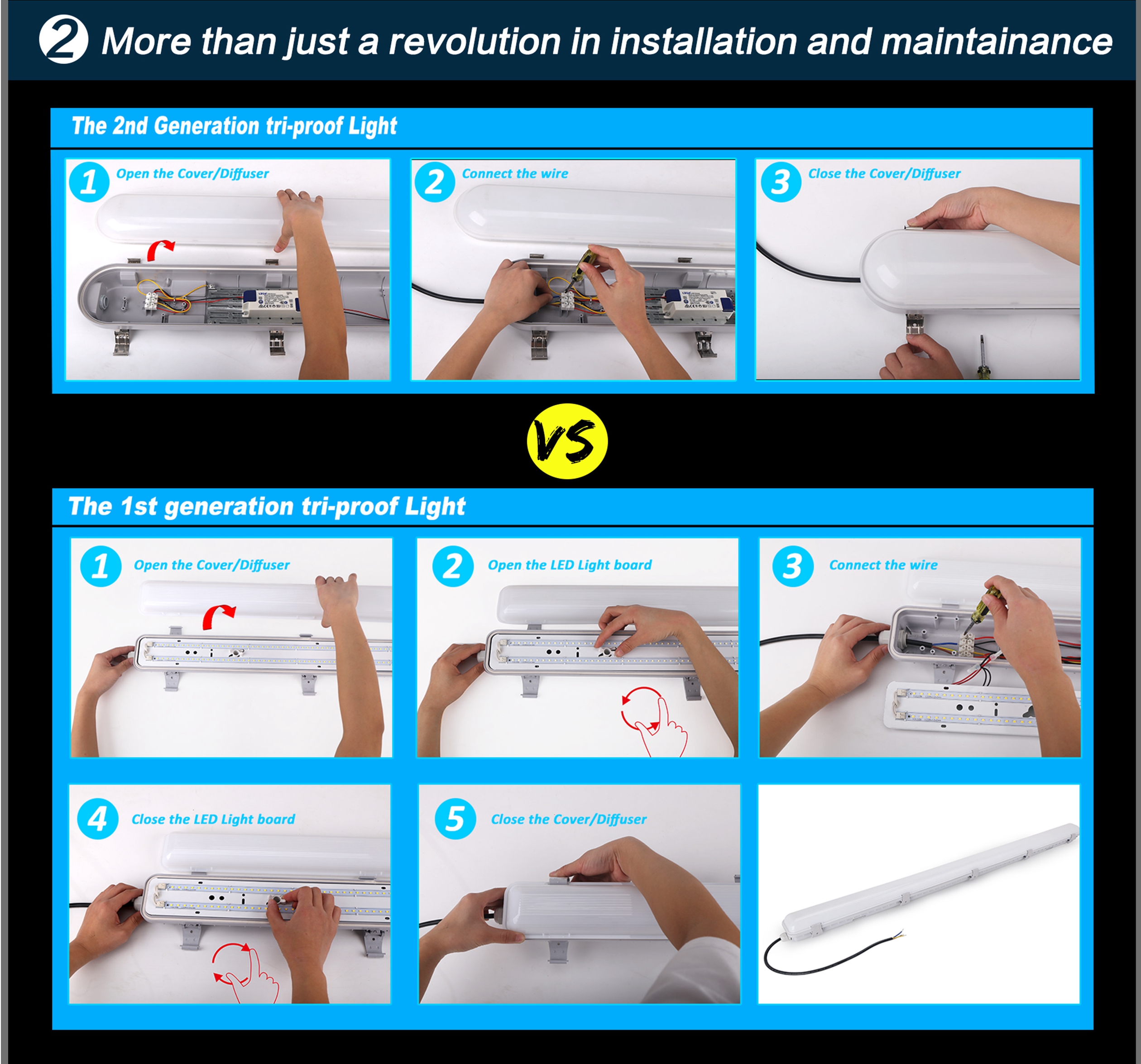

Easy Installation And Maintainance

LED tri-proof light


LED Tri-proof Light Datasheet


Model

VM-TL920

Length

2FT(60CM)

2FT(60CM)

4FT(120CM)

4FT(120CM)

4FT(120CM)

5FT(150CM)

5FT(150CM)

Power

20W

30W

40W

50W

60W

50W

60W

Lumen

3600LM

3900LM

5200LM

6500LM

7800LM

6500LM

7800LM

Input Voltage

AC 220-240V

Material

PC body + PC cover

Power Factor

>0.9

CRI

>80

Beam Angle

165 Degree

CCT

2500-6500K

Protection Class

IP 66

Driver

Lifud / Boke Driver

Optional

Emergency / Linkable / Sensor / Dimmable / Flicker-free

Work Temperature

-20℃ —— +50℃

Product Size

(MM)

600*95*80

600*125*88

1200*95*80

1200*125*88

1200*125*88

1500*95*80

1500*125*88

Quantity

(PCS/CTN)

9

6

9

6

6

9

6

Gross Weight

(KG/CTN)

11.5

8.5

19.5

14.6

14.6

21

17

Packing Size

(CM/CTN)

71*35*32

71*31*34

131*35*32

131*31*34

131*31*34

161*35*32

161*31*34

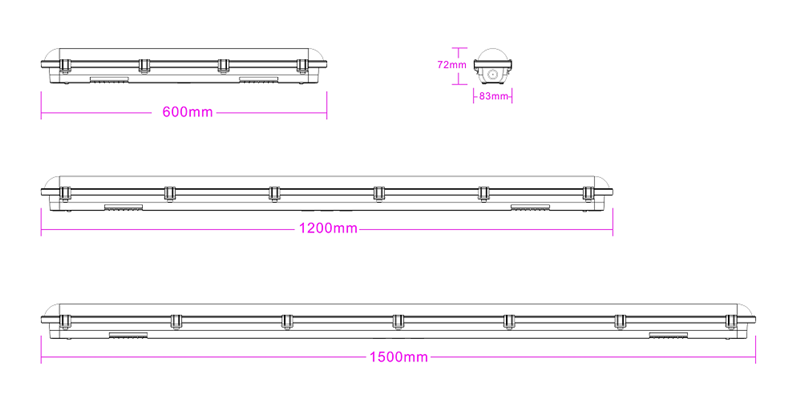

Product Demension


LED tri-proof light

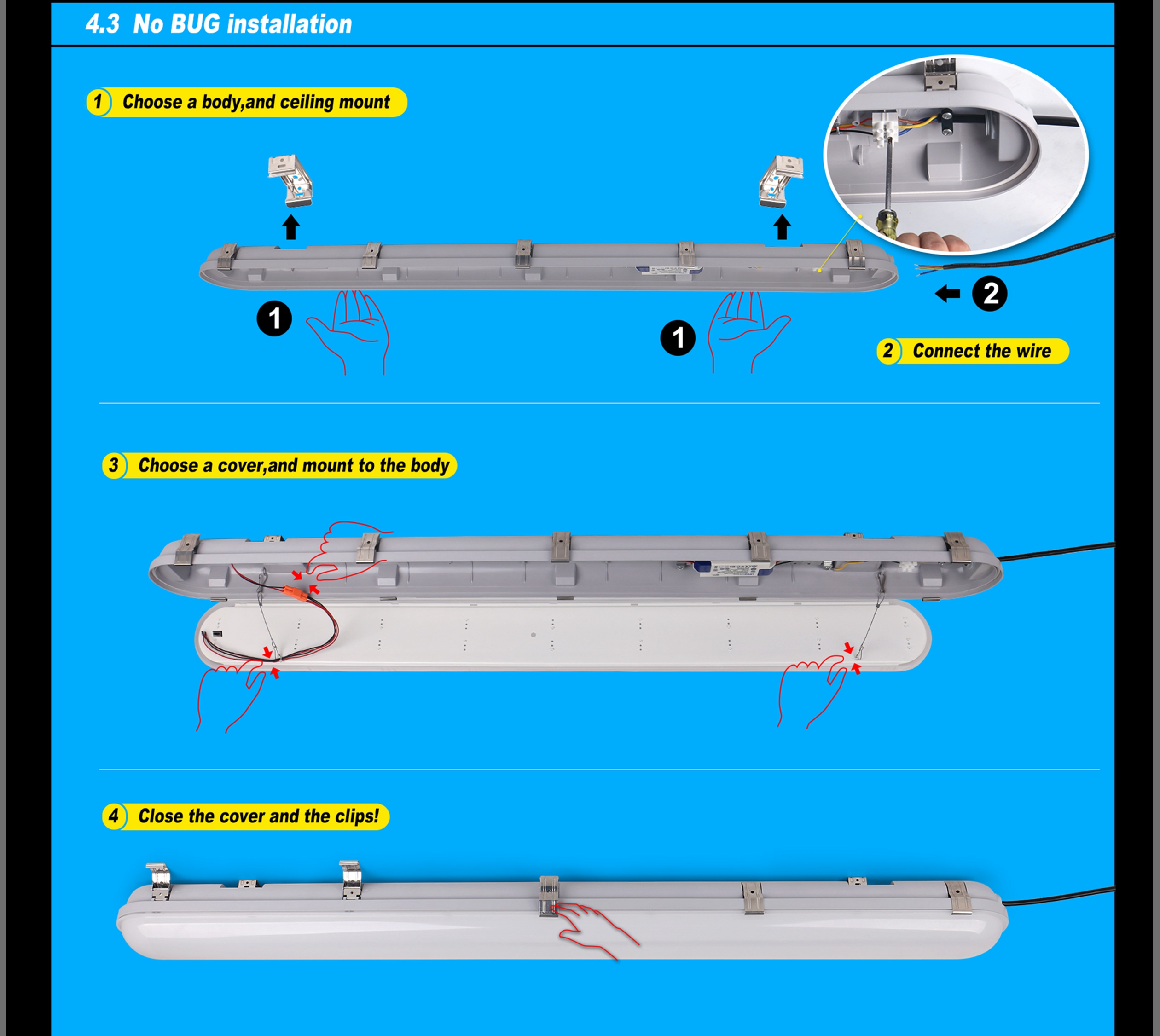

LED Tri-proof Light Installation


LED tri-proof light
